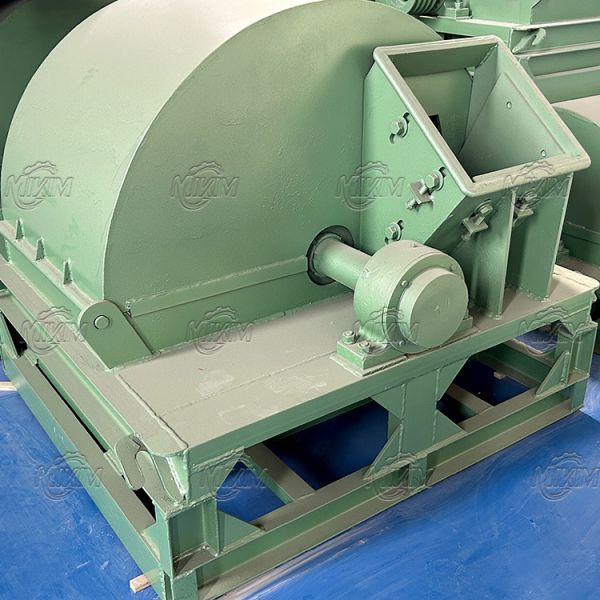

Industrial Wood Sawdust Making Chipper Machine
The wood chip machine is engineered for cutting logs, bamboo, plates, tree branches, and similar materials. Available with two feeding methods—oblique feeding and horizontal feeding—this machine accommodates long logs through horizontal feeding, while short logs and veneer chips can be processed via either feeding method.
Versatile Raw Material Processing
Capable of handling a wide range of raw materials including logs, small diameter wood, planks, bamboo, and wood scraps.
Industrial Applications
Widely utilized as fuel in power plants and serves as essential raw material in front-end processes for papermaking, medium density fiber, and other board industries.
The operational process involves feeding wood through the inlet, where high-speed rotating cutter blades process the material. Cut wood chips are then transported through the cutting chamber via high-speed airflow generated by the blades.
Automated Production Line Integration
Modern biomass pellet plants prioritize automated production, with wood crushers serving as critical components within automated production lines.
Equipment Integration
- Conveying equipment
- Drying equipment
- Biomass pellet machine
- Cooling and packaging equipment
This systematic production approach enhances overall production efficiency through coordinated equipment operation.
Production Process Stability
Stable raw material supply combined with automated processes minimizes human error, ensuring consistent product quality and reliable output.

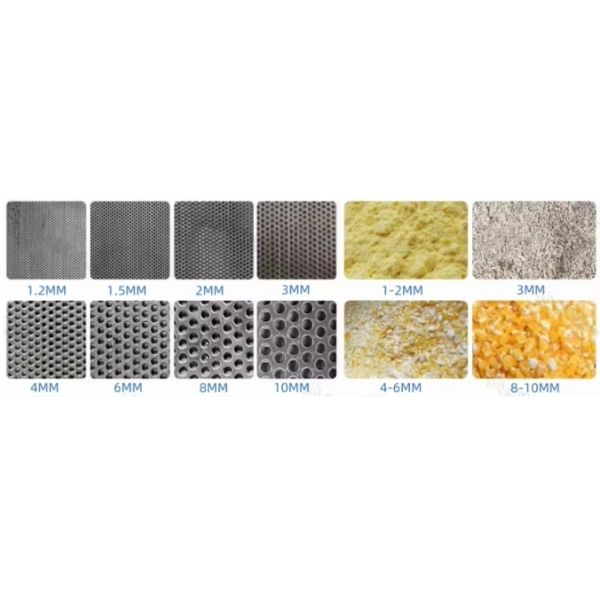

Final Product Output
Technical Specifications
| Model | Power (kw) | Capacity (kg/h) | Max Feed Size | Dimension (m) | Weight |
| MK-420 | 7.5 | 600-1000 | 15cm | 1.4*0.8*1 | 240 kg |
| MK-600 | 30 | 2000 | 20cm | 1.6*0.8*1.1 | 520 kg |
| MK-800 | 37 | 3000 | 25cm | 1.8*0.9*1.2 | 670 kg |
| MK-1000 | 75 | 5000 | 35cm | 2.2*1.3*1.4 | 1500 kg |
| MK-1200 | 90 | 6000 | 40cm | 2.4*1.4*1.5 | 2000 kg |
| MK-1500 | 110 | 8000 | 45cm | 2.6*1.5*1.6 | 2500 kg |
